AZO, the expert for automatic handling of raw materials in bulk, powdered, granular and liquid form is exhibiting at ProSweets 2019 in Cologne.

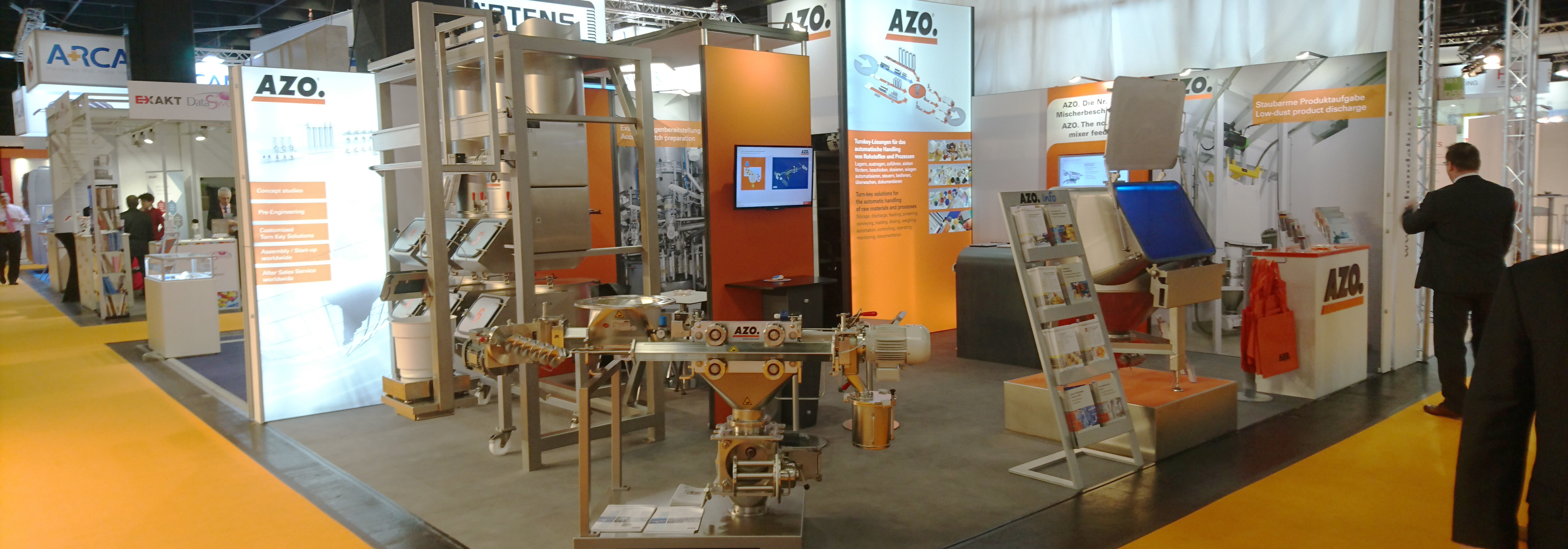

In Hall 10.1, at booth D059 we will be demonstrating solutions for automatic handling of large and medium components and the integration of small components and ingredients in the automated process.

At our trade fair stand you can find out more about the following key themes:

Requirements on automatic handling of raw materials in the confectionery industry
One task in the value chain when manufacturing confectionery is the automatic feeding of stirrer tanks, mixers, kneaders, conches and similar processes. Bulk materials typically used here include sugar, cornflour, sorbitol, cocoa, maltodextrin, milk powder and nuts. The characteristics of these bulk materials range from hygroscopic to prone to dust explosion, as well as being fragile and sensitive to heat, presenting significant challenges for the feeding systems.
The requirements in detail:
  • Integration of all powdered and liquid raw materials into the automation process, or as many as possible
  • Keeping allergens (e.g. nuts) and non-allergens separate in production
  • Closed, hygienic production
  • Constant, rigorous adherence to recipe
  • Maximum plant availability and reliable explosion protection
  • Exact documentation of all production steps
  • Batch traceability from raw material to final product
  • Permanent production transparency
  • Fully automated process using convenient process control and visualisation system
AZO solutions for the confectionery industry

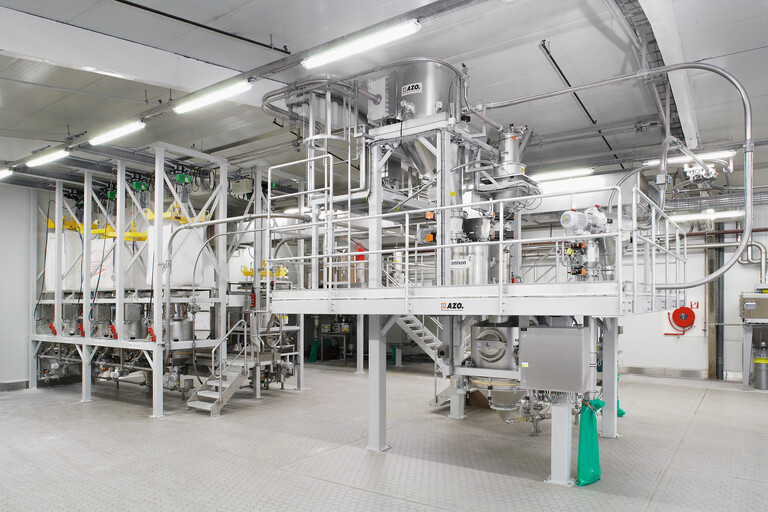

The powdered raw materials are supplied both as bulk components in storage silos and as medium and minor components in big bags and sacks. The liquid raw materials, such as glucose or oils, are stored in tanks and drums. Control screening using AZO cyclone screeners during product discharge and also during the process prevents foreign particles from entering production. Vacuum weighing systems are used to convey the bulk materials from the silos or product discharge stations into the conveying scale, simultaneously weighing them. The smallest components are provided using the operator-guided manual weighing system ManDos. The components are weighed here and, on demand, are fed directly to the mixer, stirrer tank or conche. If strict separation of allergens is required, container systems are used.
The plants stand out owing to their excellent ease of cleaning and hygienic design. Consistent compliance with the ATEX Directives during the design process keeps risks to a minimum.
The entire plant is controlled and monitored using the AZO process control and instrumentation system. The control system ensure tracking and tracing of all raw materials and end-to-end documentation of the manufacturing process.

AZO cyclone screeners combine operationally safe technology with high performance and easy maintenance and cleaning. The screeners can easily be integrated into existing systems thanks to their compact design.
Safe products thanks to AZO cyclone screening technology
  • complies with IFS and HACCP
  • automatic elimination of foreign matter
  • clean and safe finished product
End-to-end HACCP concepts in the food and dairy industries specify control screening and separation of metals as mandatory. This means any raw materials and semi-finished products are conveyed to the highly efficient, ultra-sensitive safety devices, such as metal receivers and control screeners, right upon delivery and in the production line immediately prior to filling into sacks, big bags or bulk tankers or silaging as semi-finished products. The networked control system notifies and logs incidents constantly at the critical checkpoints in the HACCP concept.

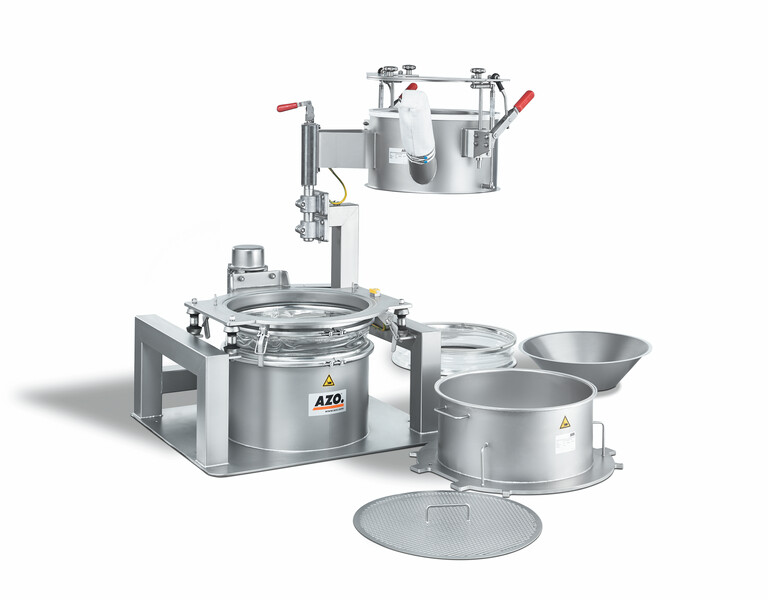

Cyclone screener type DA
The patented cyclone screener type DA with applications including control and protective screening, fractionation, separation of foreign matter, breaking up lumps and aerating products, does not required an additional dosing unit. This is why it has a low overall height and can thus be integrated into existing systems without any difficulties. Further advantages are easy opening of the machine without tools and the extraction and swiveling devices for the screen and the dosing screw, enabling easy inspection and cleaning of the screen basket and the screw. Dead space in the machine is kept to a minimum, which further improves simplicity of cleaning. The screen basket can be replaced quite simply with a "quick change" screening system.
For the separation of ferrous and paramagnetic iron impurities from 25 µm a metal grid can be installed subsequently to the screener. Even fine iron abrasions from stainless steel pipes, generated during the production process, can be separated. Conversion of austenitic steel to alpha martensite (magnetic!!)

The hygienic design hopper serves to feed bulk solids in powdered and granular form into closed materials handling systems, especially in areas calling for the highest standards in hygiene. Products can be fed from sacks, boxes, barrels or similar receptacles.
The feeding hopper is available in two different grades of stainless steel and, depending on the surface finish, has surface roughness of < 0.6 µm or < 0.8 µm. The radii on the inside of the feeding hopper are greater than 50 mm and can be cleaned leaving no residue at all. Wet cleaning is done via an integral spray head. The gasket used for the lid can easily be replaced when needed, as it is not attached with adhesive. It is composed of silicone and is metal detectable. The feeding hopper is suitable for use in areas in zones 22 and 2 where there is a risk of explosion.
To avoid dust escaping when sacks are discharged, an aspiration process can be connected that starts when the lid of the feeding hopper is opened. The lid switch complies with safety requirements for applications up to performance level D.
